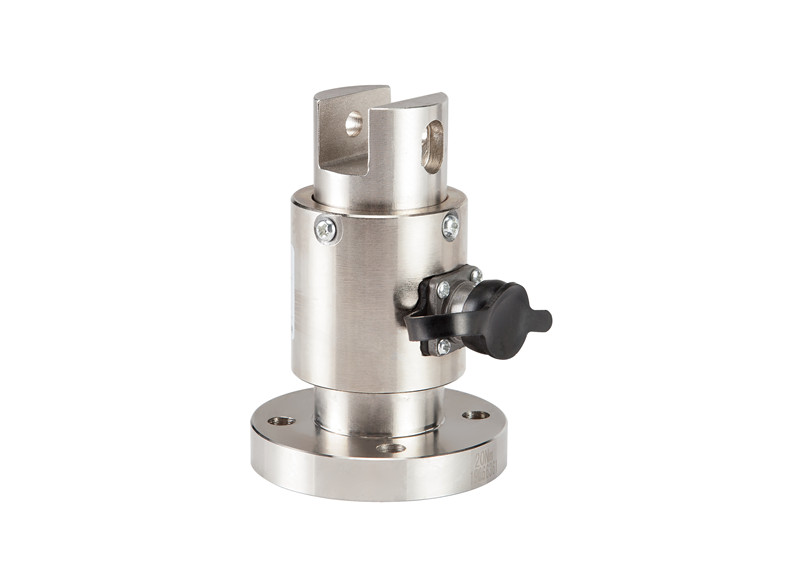

适用于静态、非连续旋转的扭矩力值的测量。
| 额定载荷 Rated Load | 1～200 (N·m) |
| 综合精度 Comprehensive Precision | 0.1～0.5%F·S |
| 灵敏度 Sensitivity | 1.0 ～1.5mV/V |
| 蠕变 Creep | ±0.1～±0.3%F·S/30min |
| 零点输出 Zero Output | ±1 %F·S |
| 零点温度影响 Temperature Effect On Zero | ±0.1～±0.3%F·S/10℃ |
| 输出温度影响 Temperature Effect On Output | ±0.1～±0.3%F·S/10℃ |
| 工作温度 Operating Temperature Range | -20℃～+65℃ |
| 输入阻抗 Input Resistance | 750±30 Ω |
| 输出阻抗 Output Resistance | 700±5 Ω |
| 绝缘电阻 Insulation Resistance | >5000 MΩ |
| 安全过载 Safe Load Limit | 150% F·S |
| 供桥电压 Bridge Voltage | 建议 10V DC |
| 材质 Material |
合金钢 Alloy Steel |
|
传感器接线方式 Load Cell Mode of Connection |
输入+:红 Input+: Red 输入-:黑 Input-:Black 输出+:绿 Output+:Green 输出-:白 Output-:White |
